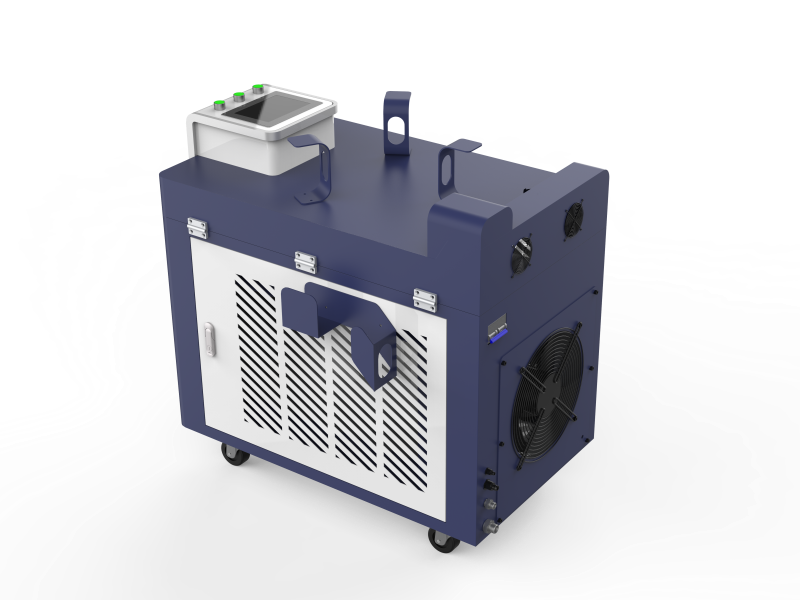

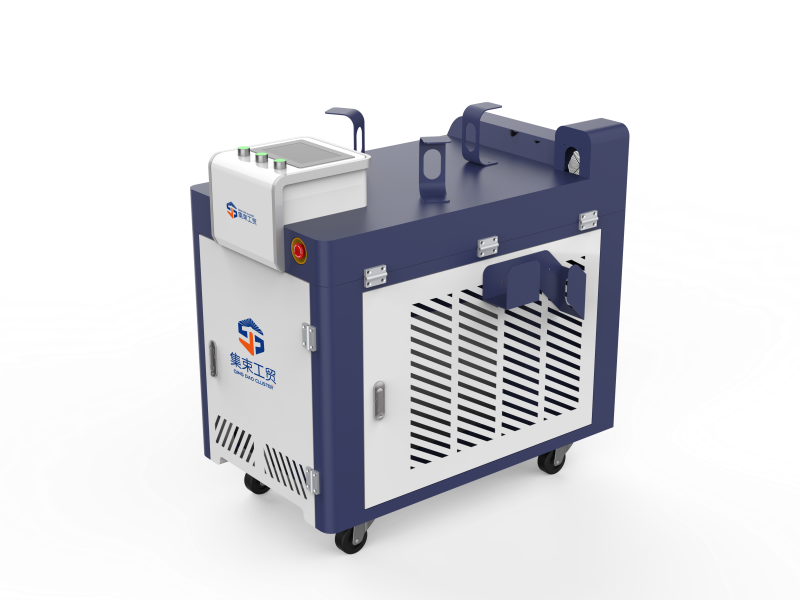

Laser Cleaning Machine

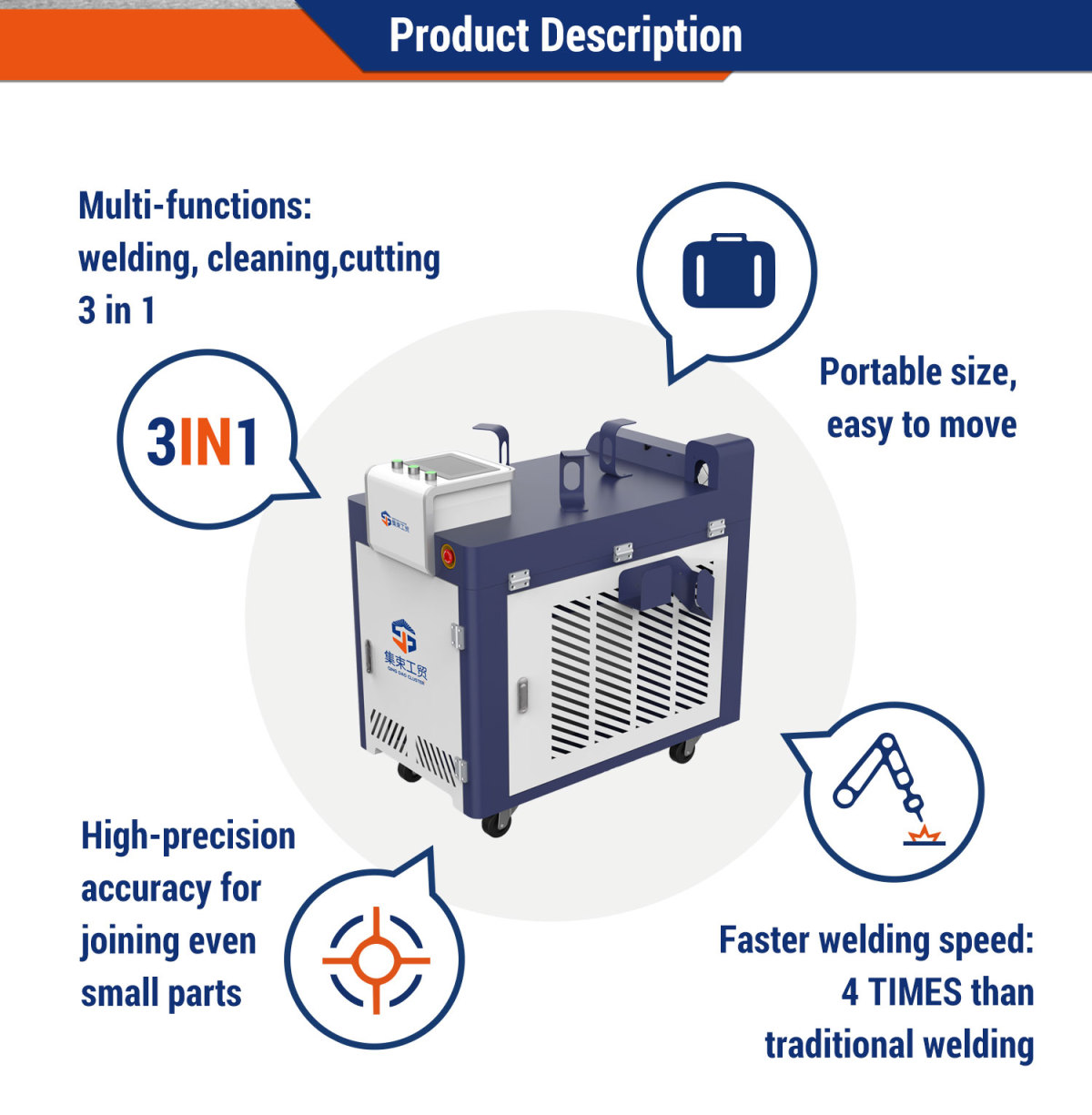

>> Product advantages：

◆ Portable size, easy to move

◆ High-precision accuracy for joining even small parts

>> Power supply: 1kw,1.5kw,2kw

+8618563778316

	Traditional Welding Method	Handheld Laser Welding Machine
Physical Hazard	Arc radiation and smoke	Low radiation, environmentally friendly
Welding Speed	Slow and inefficient	Up to 4 times faster than TIG and MIG
Quality	Welding seam is rough and irregular, needs to be polished	Good aestetic, perfect, neat welding seam, deep molten pool and high strength
Learning Difficulty	High	Low
Heated Affected Zone	Large	Low
Bending Deformation	High	Low
Welding Seam Damage	With air holes, easy to weld through	Uniform molten pool and good consistency
Welding Materials	Limited by chances in consumables	Wide range of materials

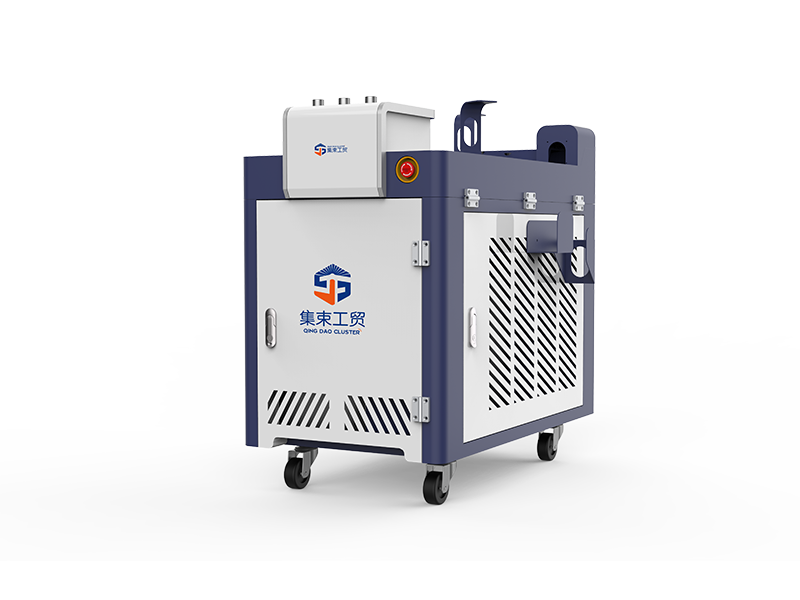

3 in 1 handheld laser welding cleaning machine


Laser power	1000w,1500w,2000w
Output light wavelength	1070±10nm
Output spot quality	M2＜1.3 , fiber core 20μm
Power stability	＜2%
Indicator light wavelength	650nm
Output fiber interface type	QBH/QD
Supply voltage	220VAC/50Hz/60Hz
Digital signal voltage	24VDC
Control Port	TTL/RS232/Ethemet/Databus
Power consumption	≤4.5kw
Operating ambient temperature range	0-55℃
Humidity range of working environment	≤95%
Overall dimensions	1075mm685mm900mm
Operating weight	56kg

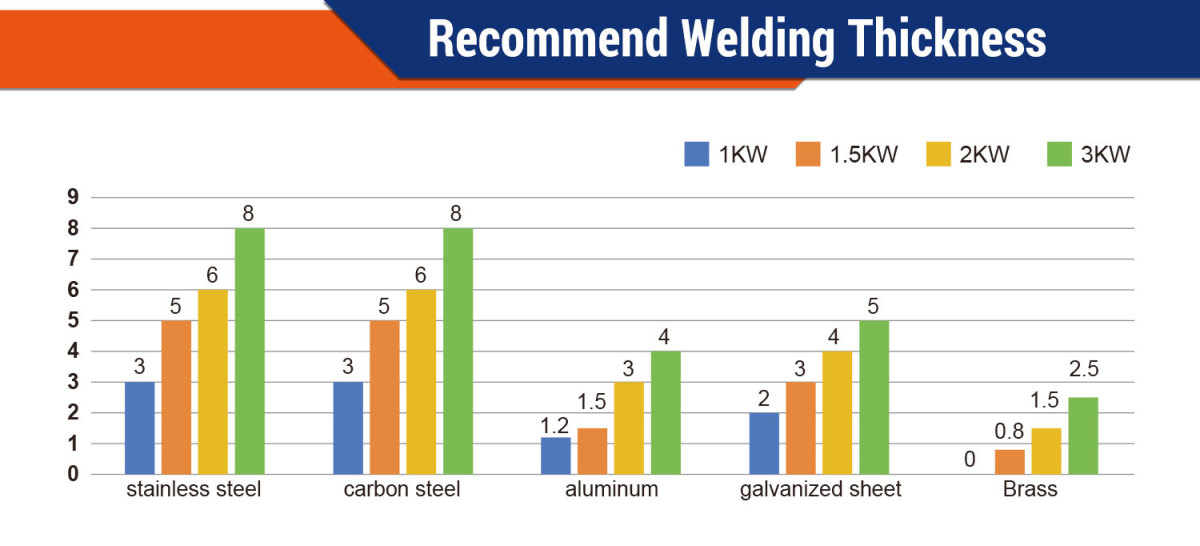

Recommended thickness table for power welding

3 in 1 handheld laser welding cleaning machine

◆ Efficient and convenient	◆ Energy saving and environmental protection
Scientifically compact design and built-in water cooling technology Smaller footprint Easy to move	Based on 976nm pump technology High electro-optical conversion efficiency ＞42%
◆ Small size	◆ Cost reduction and efficiency increase
Greatly reduced volume , weight is 60kg Less than 1/3 of the weight of tradition water-cooled handheld welding Can be placed in the truck of the car , easy to transport	Low power consumption , energy saving and environment protection power supply 220VAC-16A
◆ Strong adaptability	◆ Safety and security
Cutting , welding , cleaning any adaptation	Triple protection design built-in air pressure detection device


