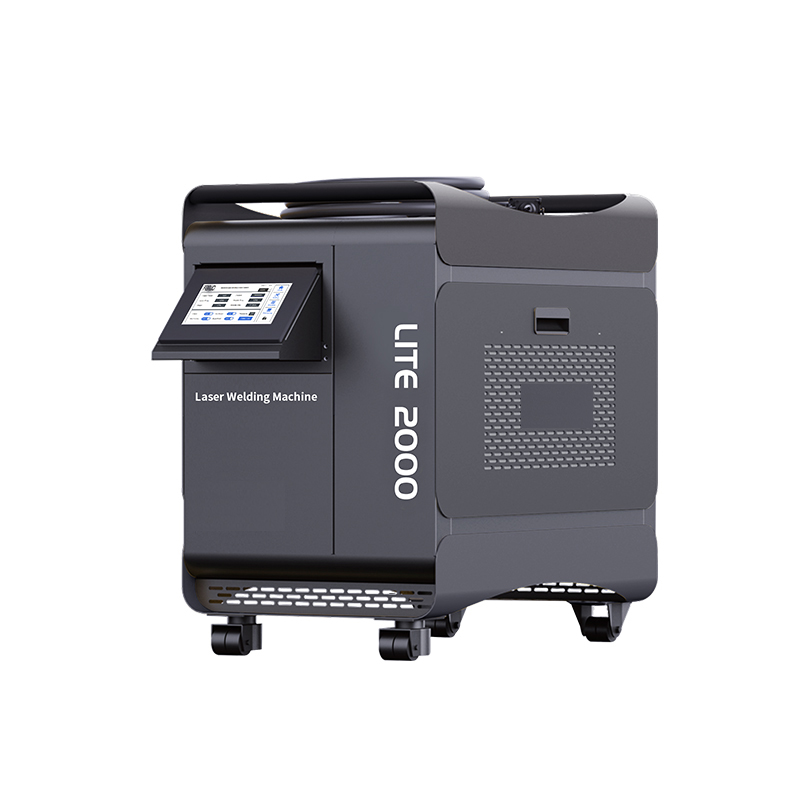

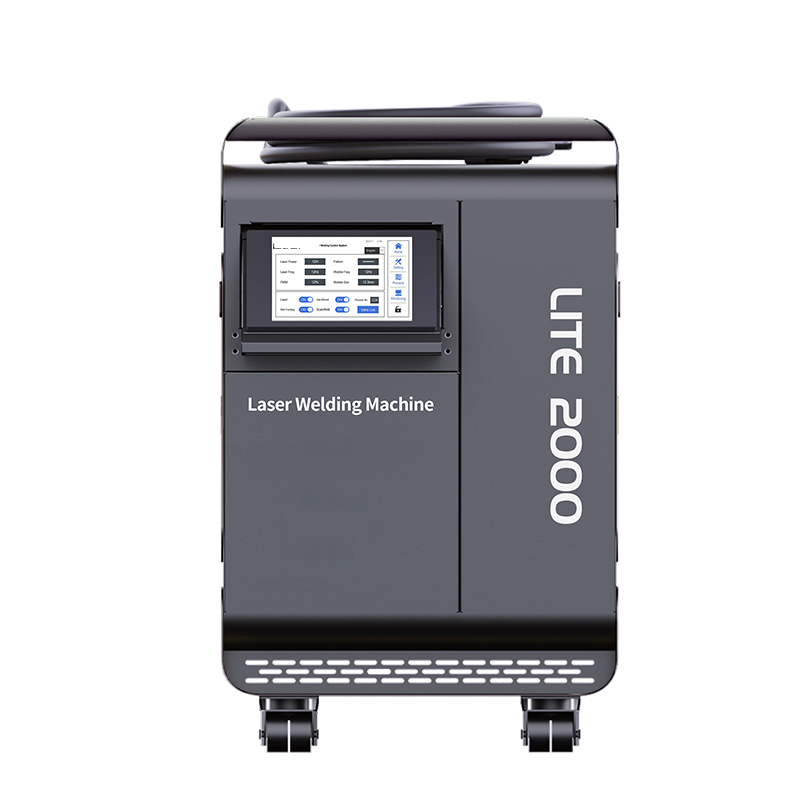

JS-HWG Laser Welding Machine

>> Product advantages：

◆ high quality, high stability, high configuration, high security.

◆ with gas detection alarm, kinetic energy detection, machine minimize loss, to ensure that the machine life;

◆ Additional filters, anti-interference ability, maximize the stability of the machine.

>> Power supply: 1kw,1.5kw,2kw

+8618563778316

TECHNICAL ADVANTAGES



	Traditional Welding Method	Handheld Laser Welding Machine
Physical Hazard	Arc radiation and smoke	Low radiation, environmentally friendly
Welding Speed	Slow and inefficient	Up to 4 times faster than TIG and MIG
Quality	Welding seam is rough and irregular, needs to be polished	Good aestetic, perfect, neat welding seam, deep molten pool and high strength
Learning Difficulty	High	Low
Heated Affected Zone	Large	Low
Bending Deformation	High	Low
Welding Seam Damage	With air holes, easy to weld through	Uniform molten pool and good consistency
Welding Materials	Limited by chances in consumables	Wide range of materials

Laser power	1000w 1500w 2000w 3000w
Output light wavelength	1070±10nm
Output spot quality	M2＜1.3 , fiber core 20μm
Power stability	＜2%
Indicator light wavelength	650nm
Output fiber interface type	QBH/QD
Supply voltage	220VAC/50Hz/60Hz
Digital signal voltage	24VDC
Control Port	TTL/RS232/Ethemet/Databus
Power consumption	≤4.5kw
Operating ambient temperature range	0-55℃
Humidity range of working environment	≤95%
Overall dimensions	1075mm685mm900mm
Machine Size	L980W480H790mm
Operating weight	165kg

Recommended thickness table for power welding

◆ Efficient and convenient	◆ Energy saving and environmental protection

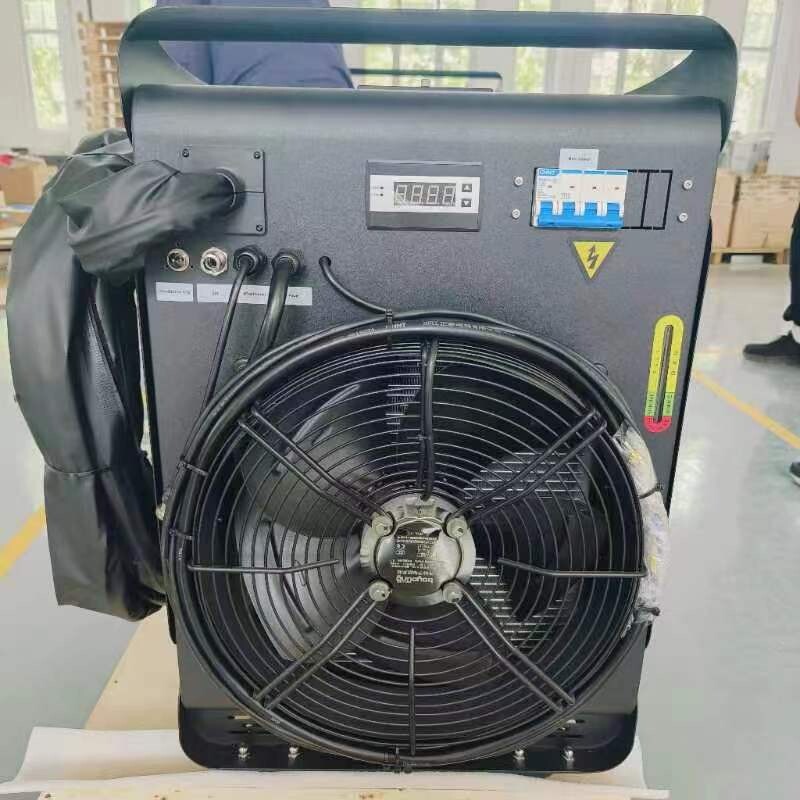

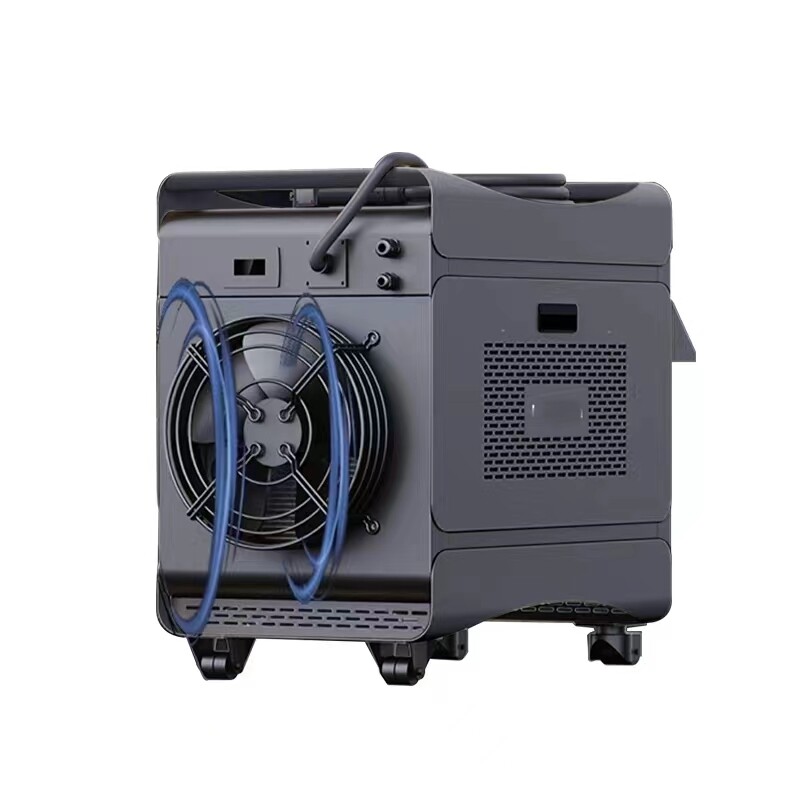

Scientifically compact design and built-in water cooling technology Smaller footprint Easy to move	Based on 976nm pump technology High electro-optical conversion efficiency ＞42%
◆ Small size	◆ Cost reduction and efficiency increase
Greatly reduced volume , weight is 60kg Less than 1/3 of the weight of tradition water-cooled handheld welding Can be placed in the truck of the car , easy to transport	Low power consumption , energy saving and environment protection power supply 220VAC-16A
◆ Strong adaptability	◆ Safety and security
Cutting , welding , cleaning any adaptation	Triple protection design built-in air pressure detection device
