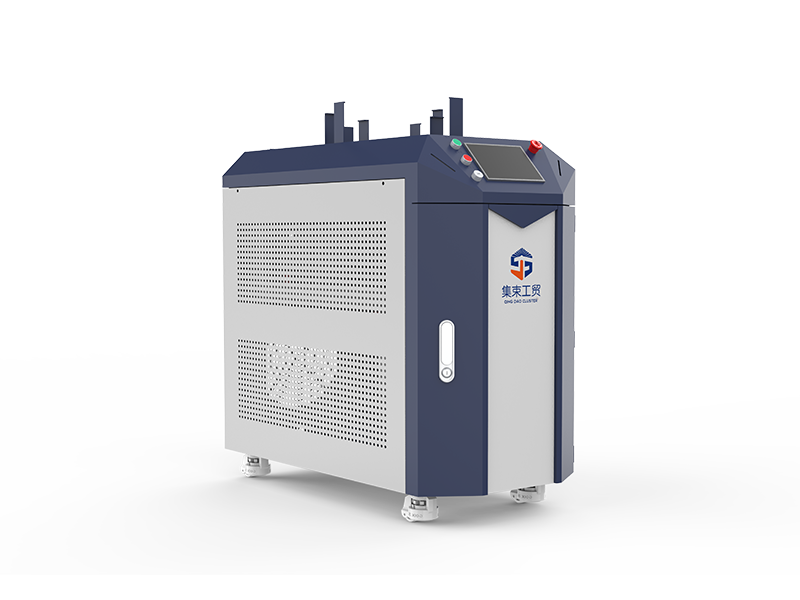

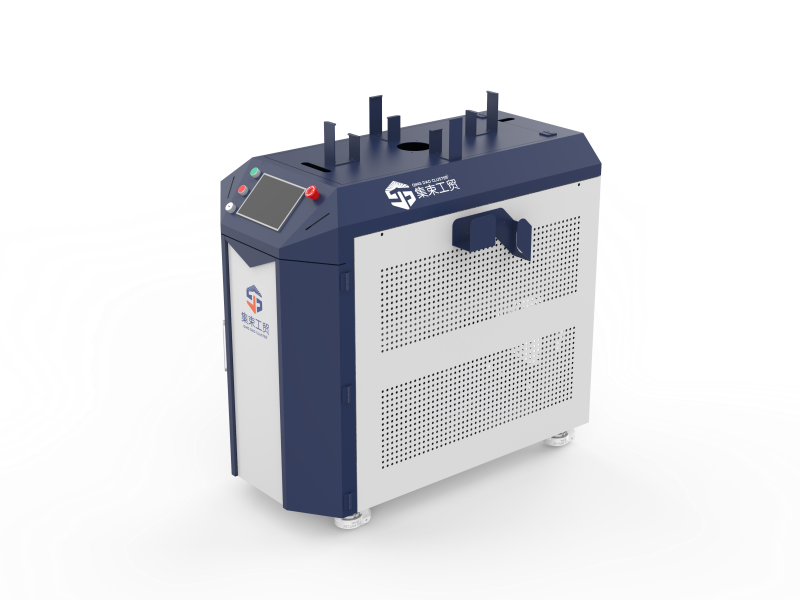

CE laser welding machine

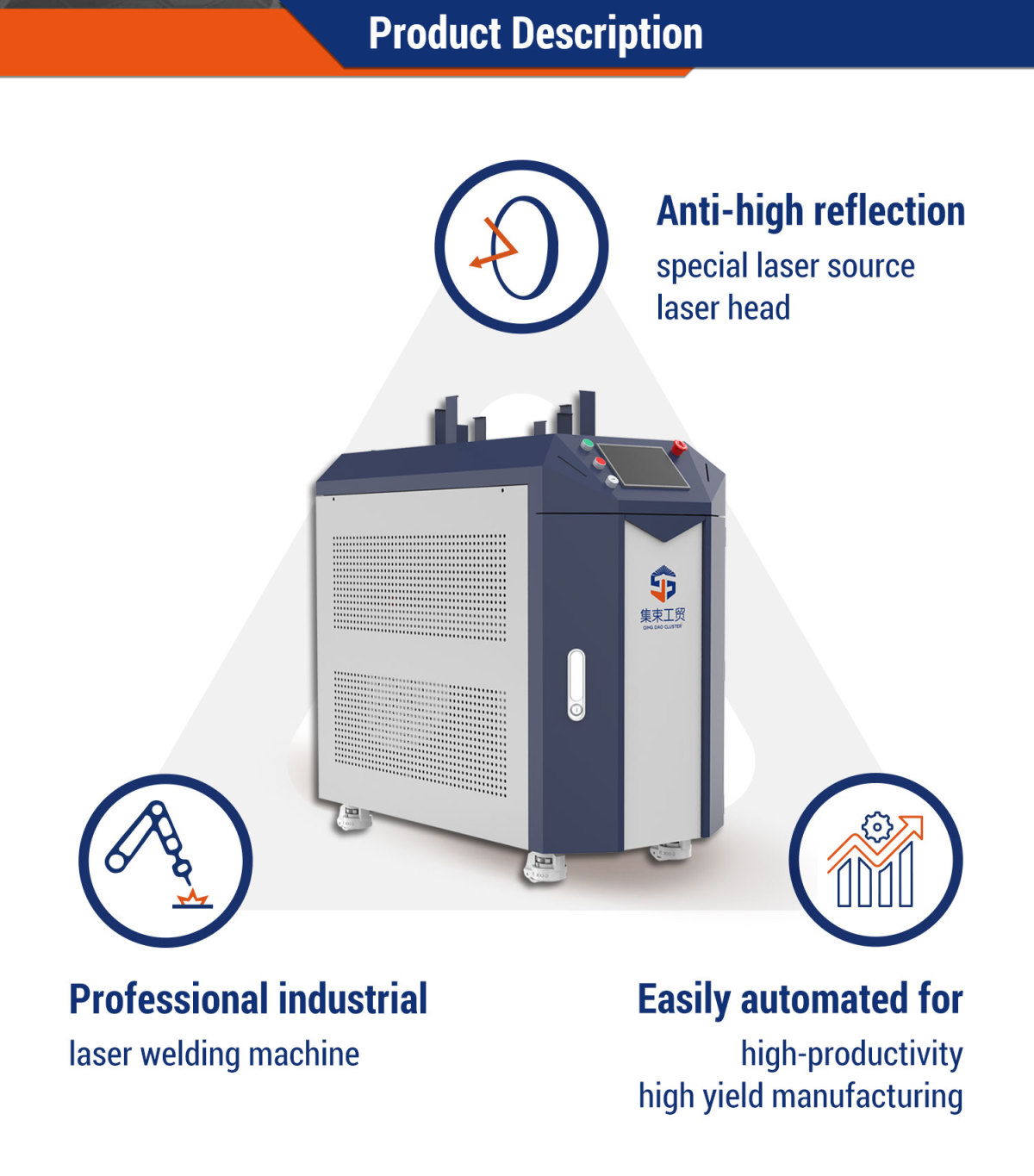

>> Product advantages：

◆ High quality CE certificate parts

◆ Professional industrial laser welding machine

◆ Easily automated for high-productivity, high-yield manufacturing

>> Power supply: 1kw,1.5kw,2kw,3kw

+8618563778316

	Traditional Welding Method	Handheld Laser Welding Machine
Physical Hazard	Arc radiation and smoke	Low radiation, environmentally friendly
Welding Speed	Slow and inefficient	Up to 4 times faster than TIG and MIG

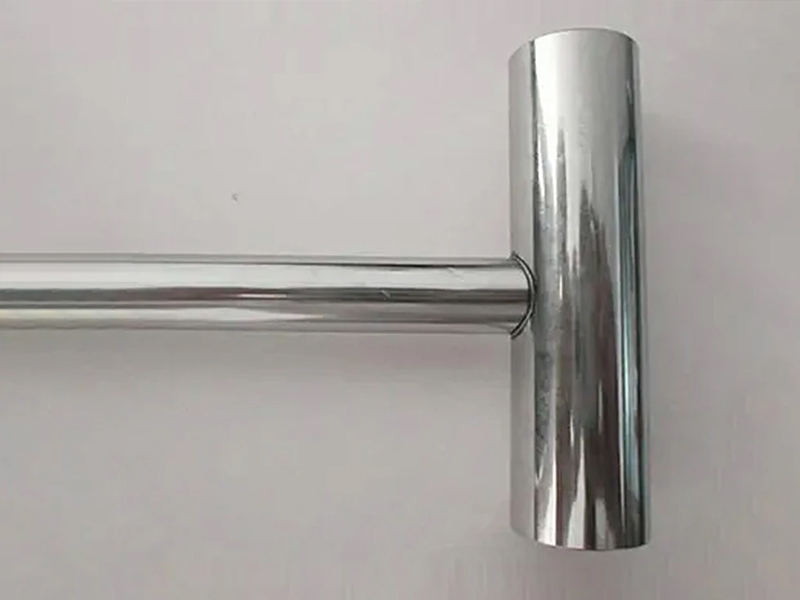

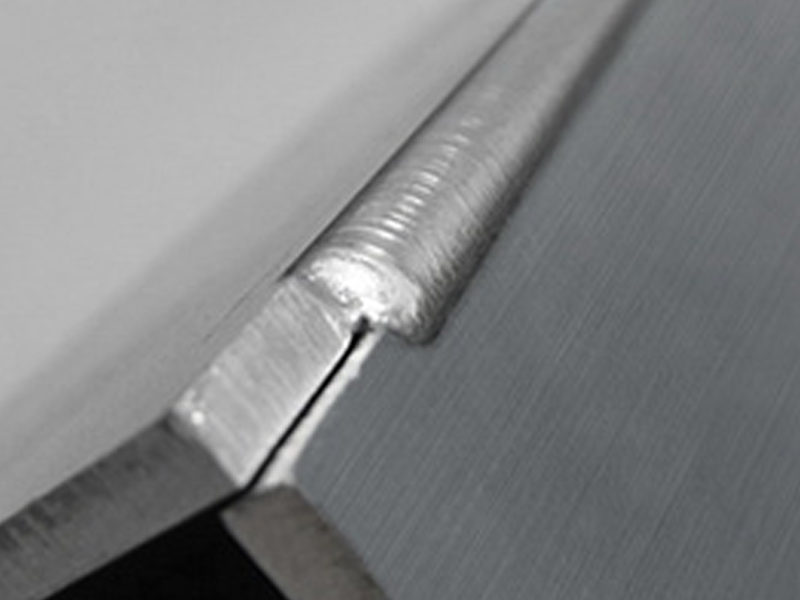

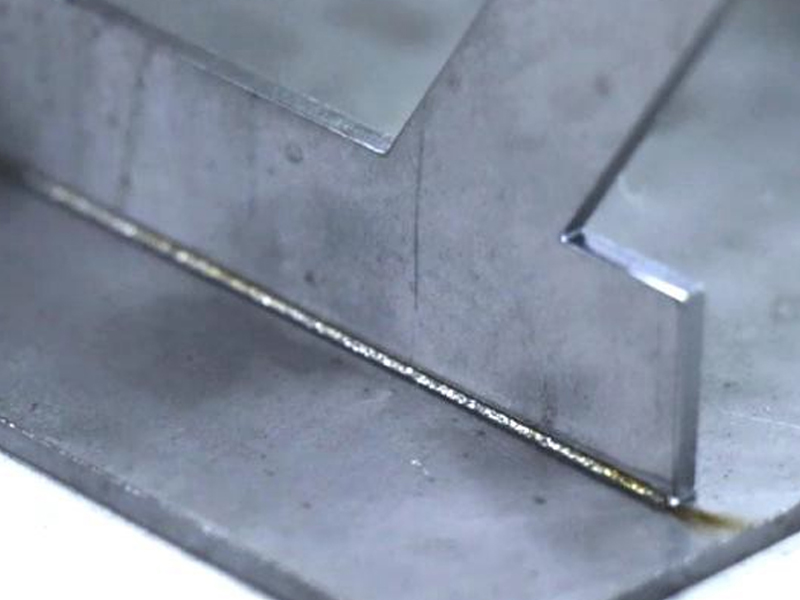

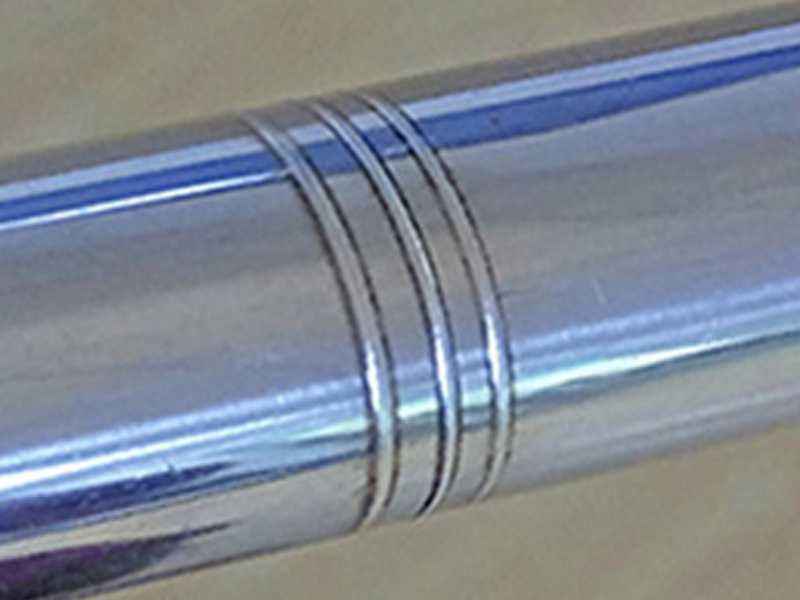

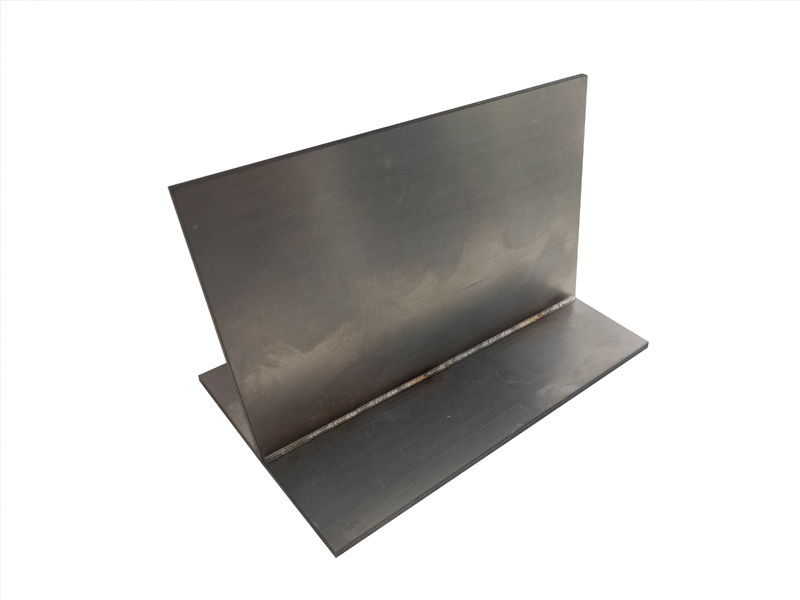

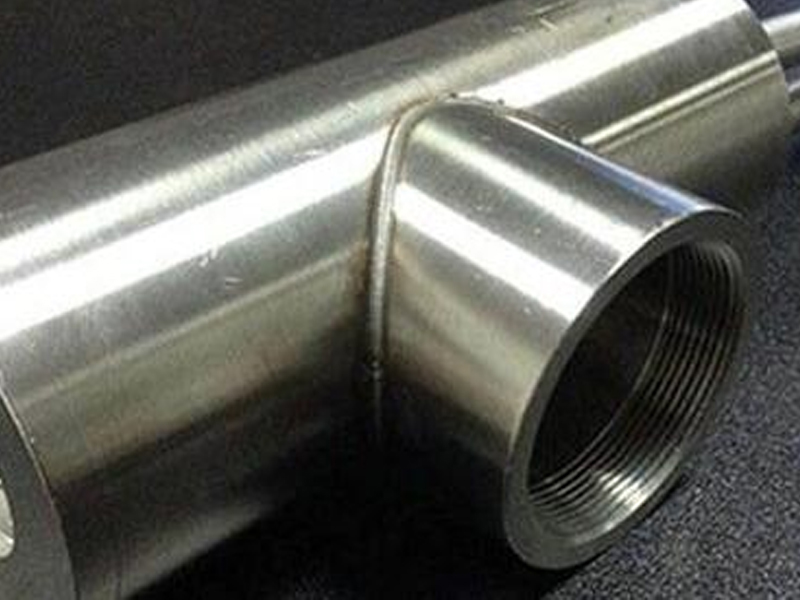

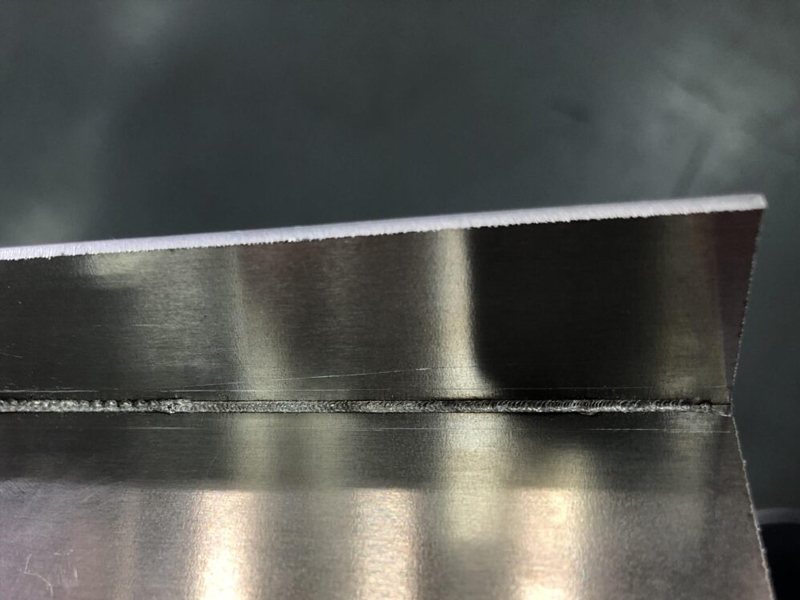

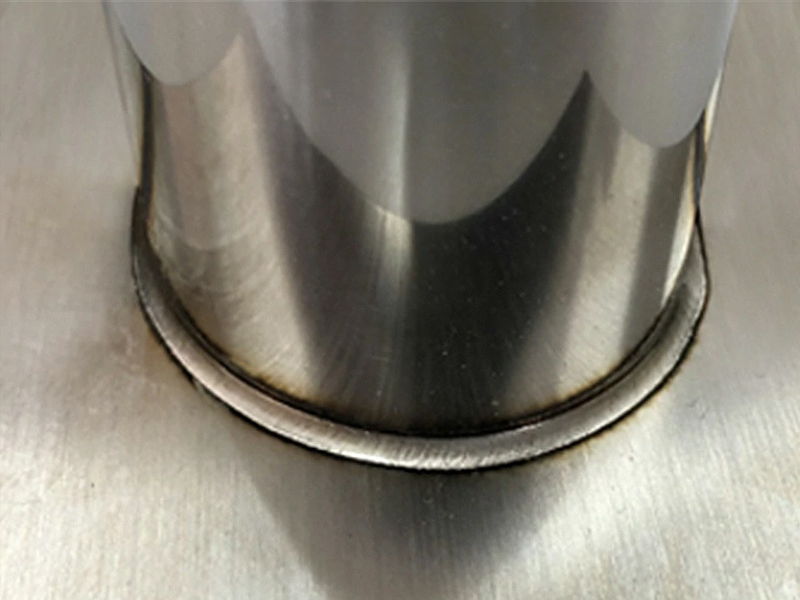

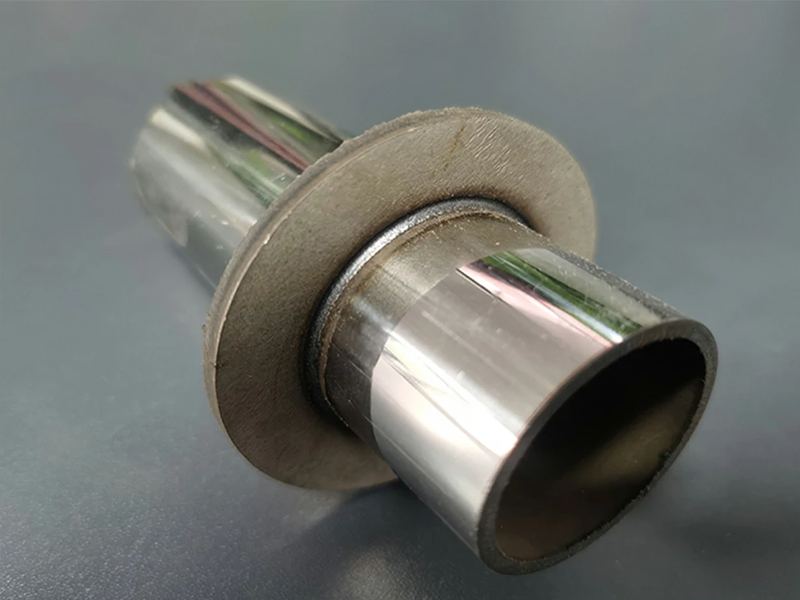

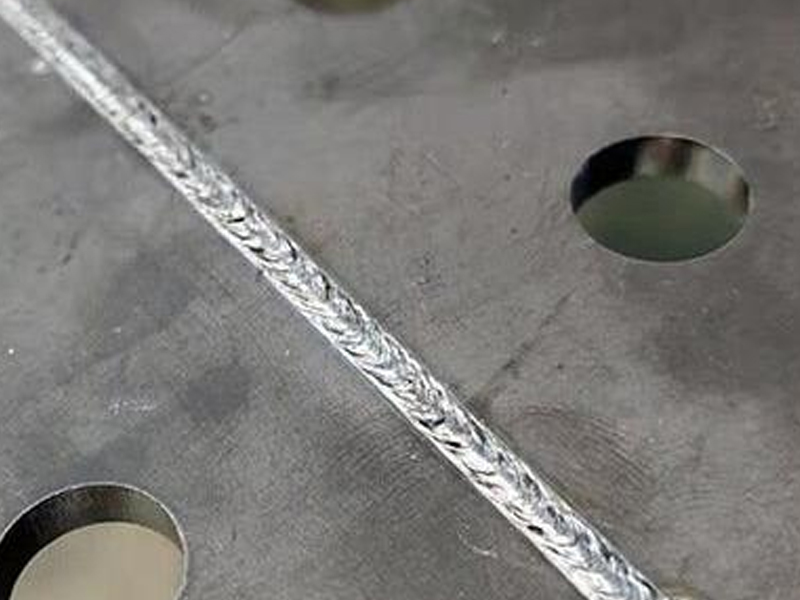

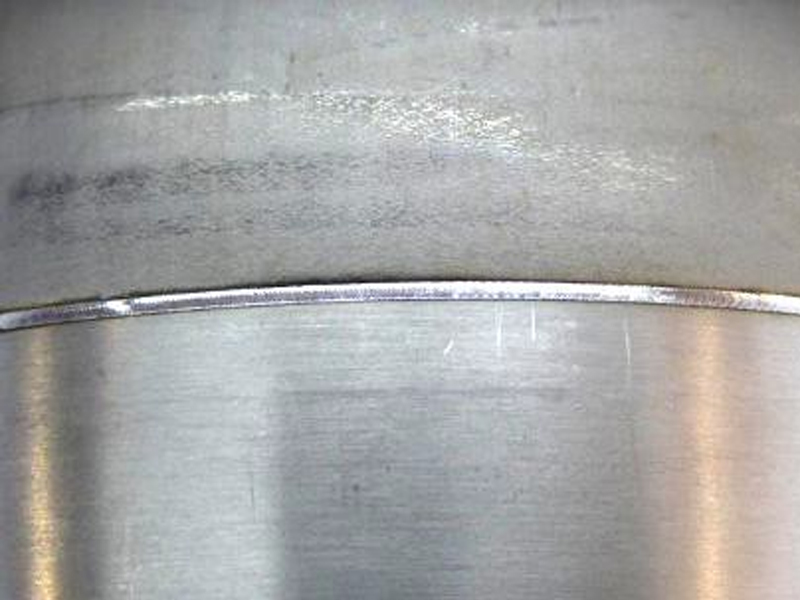

Quality	Welding seam is rough and irregular, needs to be polished	Good aestetic, perfect, neat welding seam, deep molten pool and high strength
Learning Difficulty	High	Low
Heated Affected Zone	Large	Low
Bending Deformation	High	Low
Welding Seam Damage	With air holes, easy to weld through	Uniform molten pool and good consistency
Welding Materials	Limited by chances in consumables	Wide range of materials

CE laser welding machine


Model	JS-HWB
Laser source	1000/1500/2000/3000W
Laser wavelength	1070nm
Fiber core diameter	50μm
Fiber length	Standard configuration 10m
Operation mode	Continuous/modulation
Galvo width	0.5-6mm
Scanning speed	≤8000mm/s
Welding speed	0-120mm/s
Refrigeration unit	Intelligent double temperature chiller
Operating ambient temperature range	15-35℃
Humidity range of working environment	＜70% without condensation
Welding material thickness	≤8mm
Welding seam requirement	≤1.5mm
Working voltage	380v ±10%;50/60Hz
Overall power	≤15kw
Product size	1350mm600mm1300mm

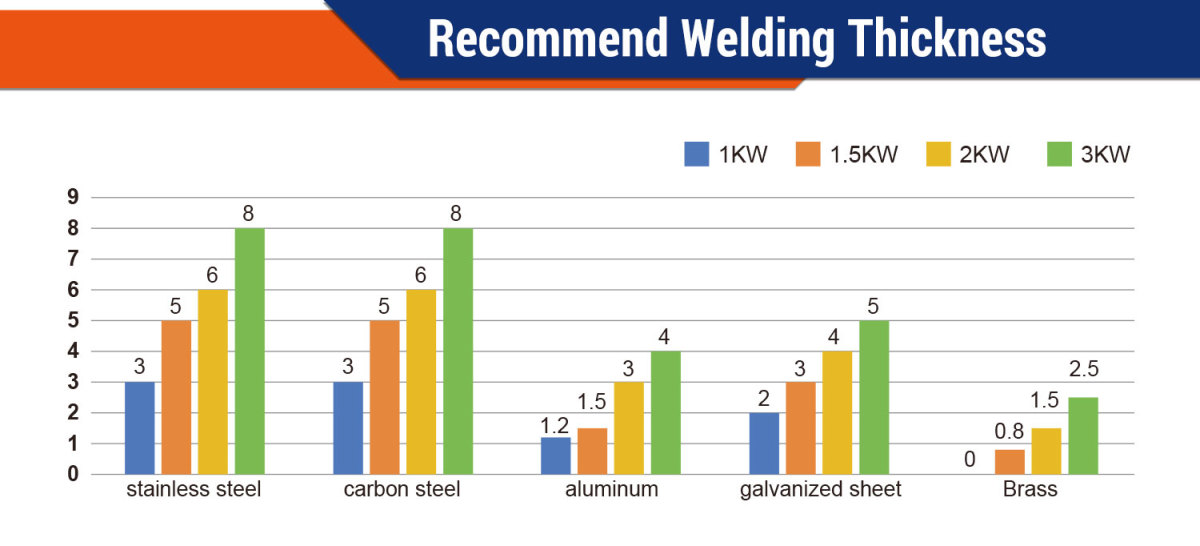

Recommended thickness table for power welding

CE laser welding machine

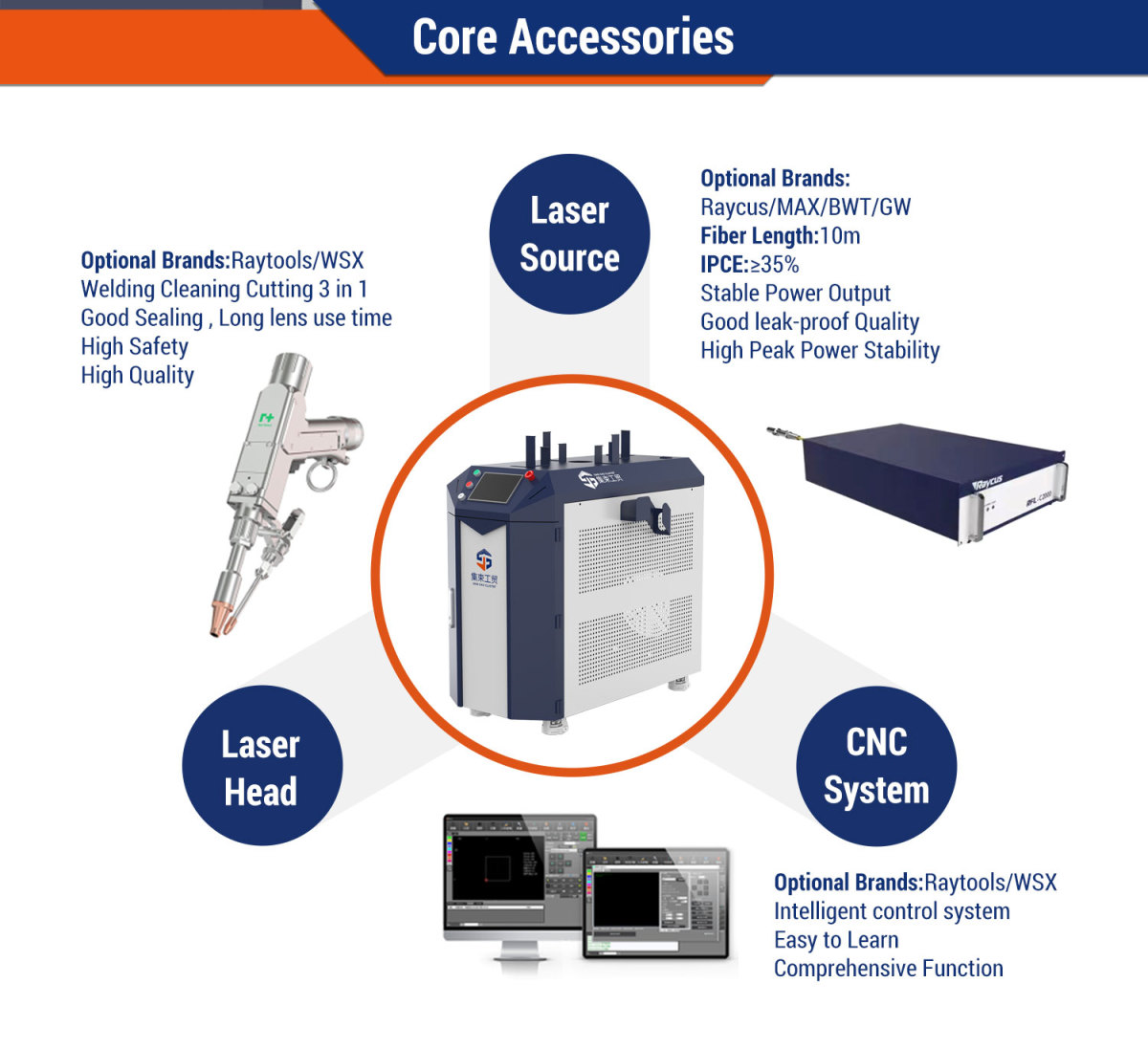

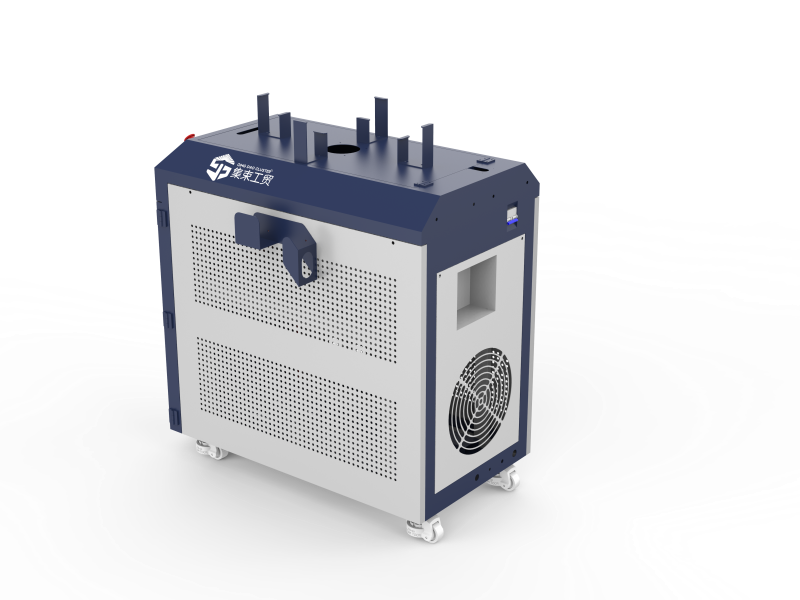

◆ Integral cabinet	◆ Laser Source
Small footprint Strong comprehensive performance	High-brightness lasers are suitable for highly reflective materials such as aluminum and copper 50μm fiber core diameter , higher electro-optical conversion efficiency Good beam quality , strong power loop stability and stable system

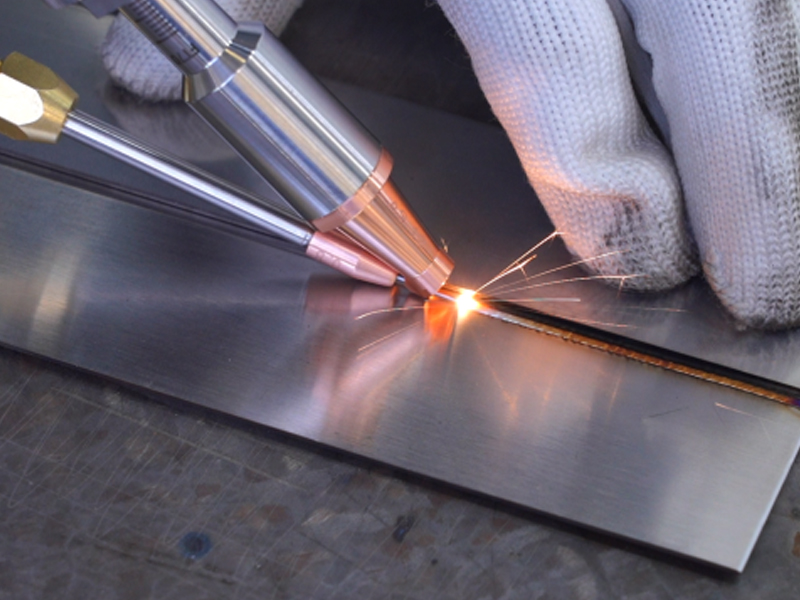

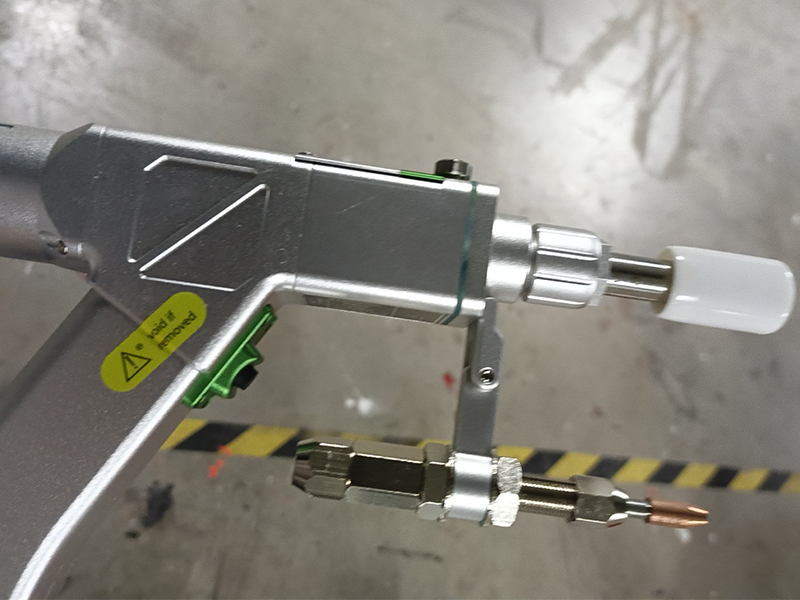

◆ Swing welding head	◆ Control system
Adjustable galvanometer width , range is 0.5-5mm Special welding nozzle , any position and angle weld Infrared positioning , higher accurate	LCD touch screen , good interactive control system Preset a variety of process modes to meet different process needs Preset multiple security alarms , more secure and reliable
◆ Dual temperature chiller	◆ Optional automatic wire feeding device
Intelligent temperature control , compressor refrigeration LCD display , temperature is always displayed Easy to use , stable performance , energy saving and high efficiency	Software control , adjustable wire feeding speed Fill the weld seam and increase the welding strength


